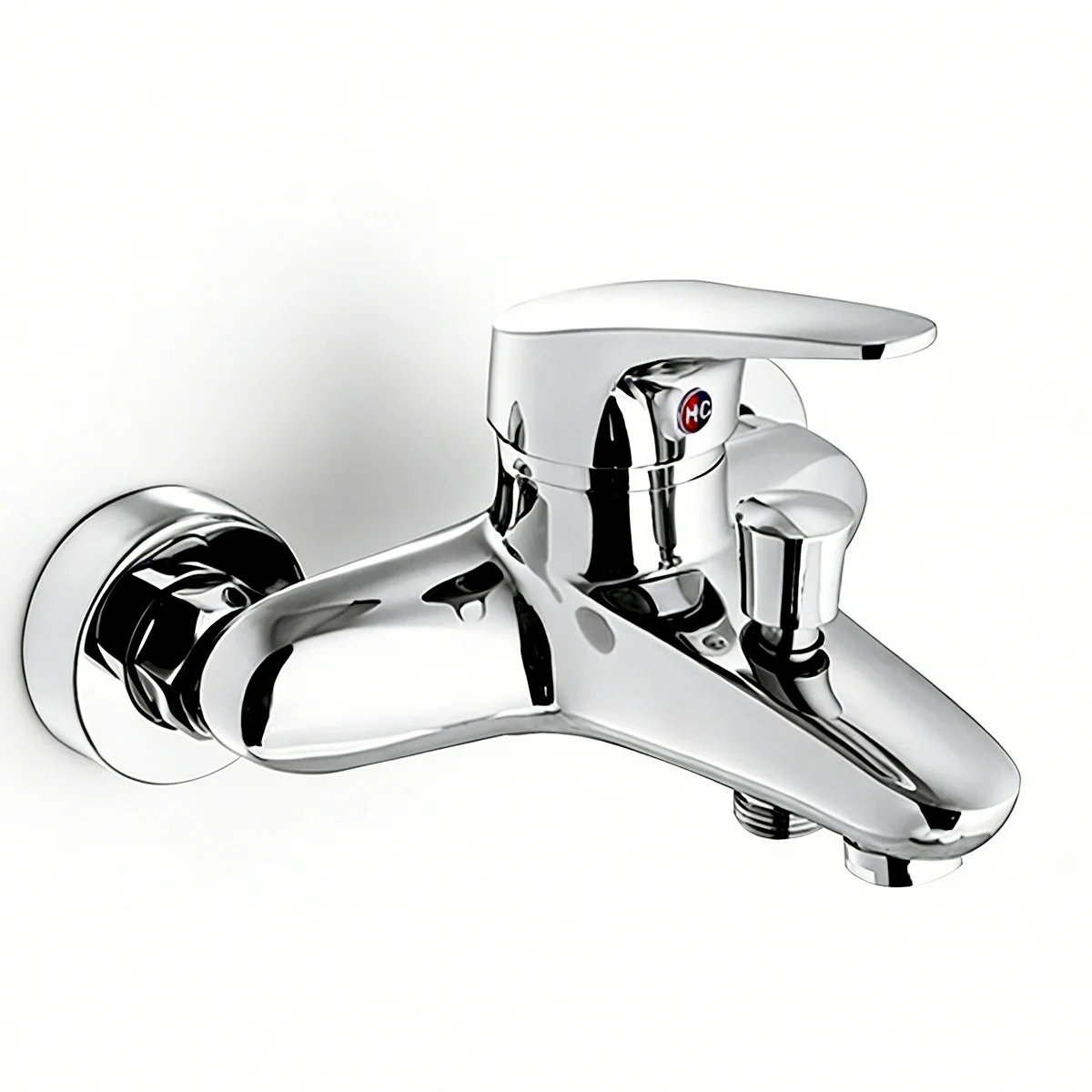

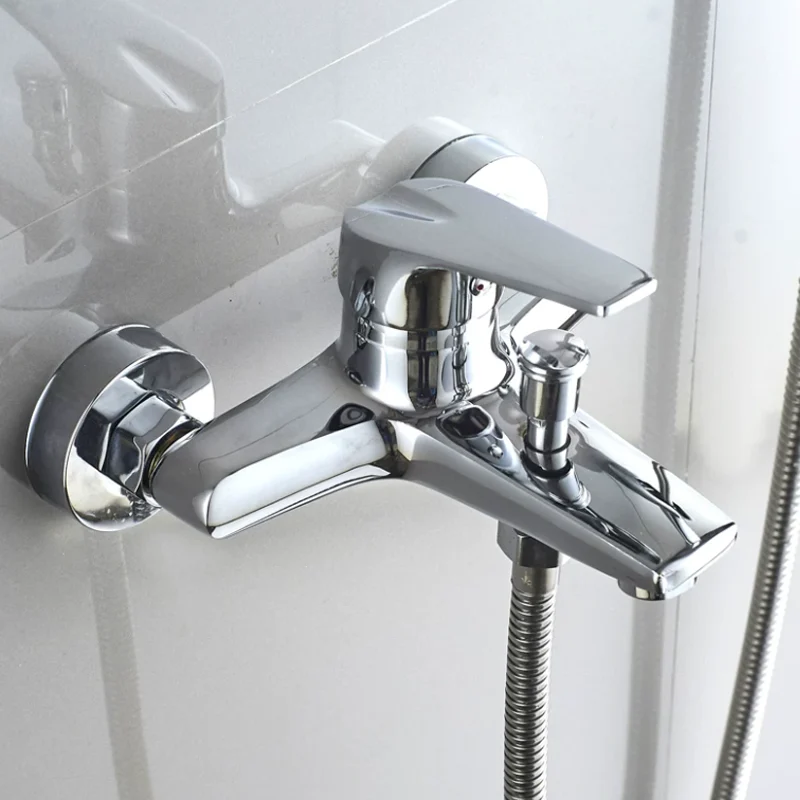

This wall-mounted bathroom faucet unit is constructed from solid brass, with a compact size of 18 × 15 cm. It includes a built-in diverter that allows for both bathtub and hand shower operation. The chrome finish improves durability and protection against corrosion. OEM customization and the development of new molds can be provided upon request.
Provides complete customized manufacturing based precisely on the client's initial English engineering CAD blueprints. Faithfully reproduces faucet overall dimensions, spout curvature, handle shape, wall-mount distance, and exterior finish specifications, ensuring zero dimensional deviation and full design accuracy.
Carries out expert structural modeling, tolerance checks, and internal water channel layout reviews for personalized drawings. Fine-tunes wall embedding depth, water intake alignment, and internal pipeline curvature to prevent installation complications and structural flaws, fully suiting on-site building conditions.
Refines drawing specifications according to global G1/2 plumbing requirements and local building codes. Adjusts connection tolerances and waterway pressure settings to guarantee the tailored faucet works with worldwide water systems and facilitates seamless project approval.
Employs flexible, multi-level manufacturing options, including prototype sample tailoring, medium-volume distributor inventory orders, and large-scale turnkey projects for hotels or apartments. Applies specialized process workflows and standardized quality control measures for each order size to maintain consistent quality and timely delivery.
Certified solid brass of grade HPb59-1 is poured into molds at temperatures between 980 and 1,020°C through gravity casting to create the faucet body. Each cast part is cleaned of burrs, blast-cleaned with shot, and checked 100% by sight to confirm a solid internal makeup with no splits or gaps from shrinkage.
The faucet body is shaped using 4-axis CNC machining centers, where internal water passages, valve cavities, and G1/2 threaded fittings are completed. Key measurements are kept within a tolerance of ±0.05 mm to guarantee correct fitting during assembly and straightforward installation.

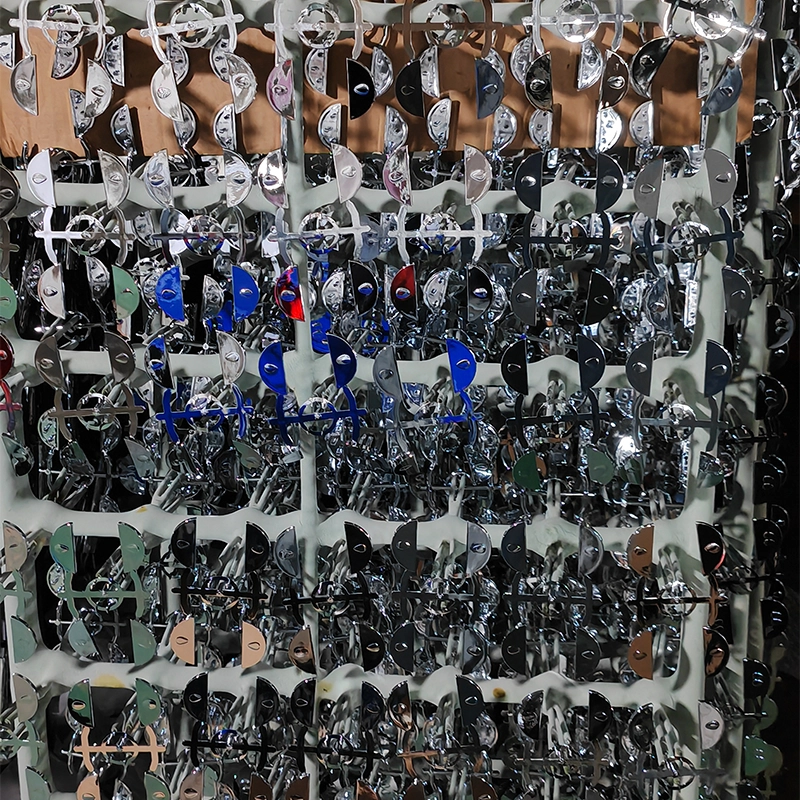

After eight stages of mechanical polishing, every faucet is coated first with a 10–15 μm layer of nickel, then with a 0.25–0.30 μm layer of chrome. This multi-layer finish boosts resistance to corrosion, increases surface hardness, and extends the longevity of the outer appearance.
Ceramic cartridges, diverters, and sealing parts are installed using workstations that control applied torque. Each piece is 100% tested for leaks at 0.8 MPa and also tested with water pressure at 1.6 MPa prior to the final quality check.
Once finished, faucets undergo checks for appearance, dimensions, and functionality before being placed in protective packaging. Standardized IQC–IPQC–OQC quality control guarantees consistent manufacturing standards and dependable shipment in bulk for OEM and engineering uses.
High-purity solid brass is used as the raw material, selected according to rigorous screening criteria. This ensures the faucet body offers strong resistance to corrosion and performs reliably in high-humidity conditions.
The core valve and diverter cartridges are subjected to thousands of repeated opening and closing cycles. As a result, they maintain zero leakage and responsive operation even after prolonged, frequent use.
The diverter’s silicone seals go through specialized wear and aging resistance tests. This allows them to withstand repeated, long-term switching operations without degradation.
Each completed faucet undergoes tests for water pressure resistance, splash protection, water flow stability, and ease of operation. This ensures it meets the demands of high-frequency use in both residential and commercial settings.
The electroplated surface layers are tested for resistance to oxidation and corrosion. This guarantees long-term visual appeal and functional reliability in bathroom environments.

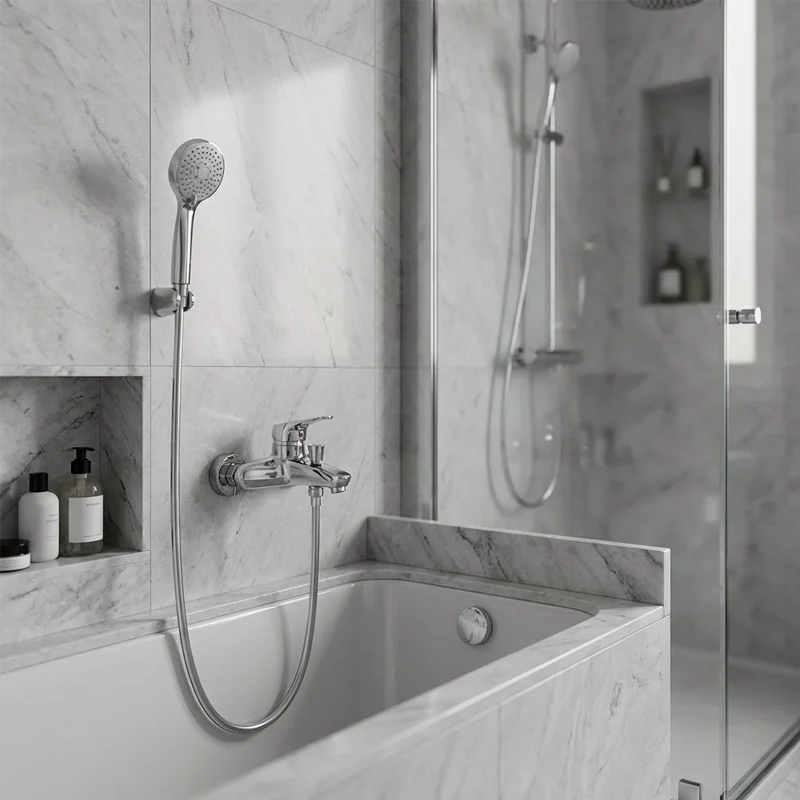

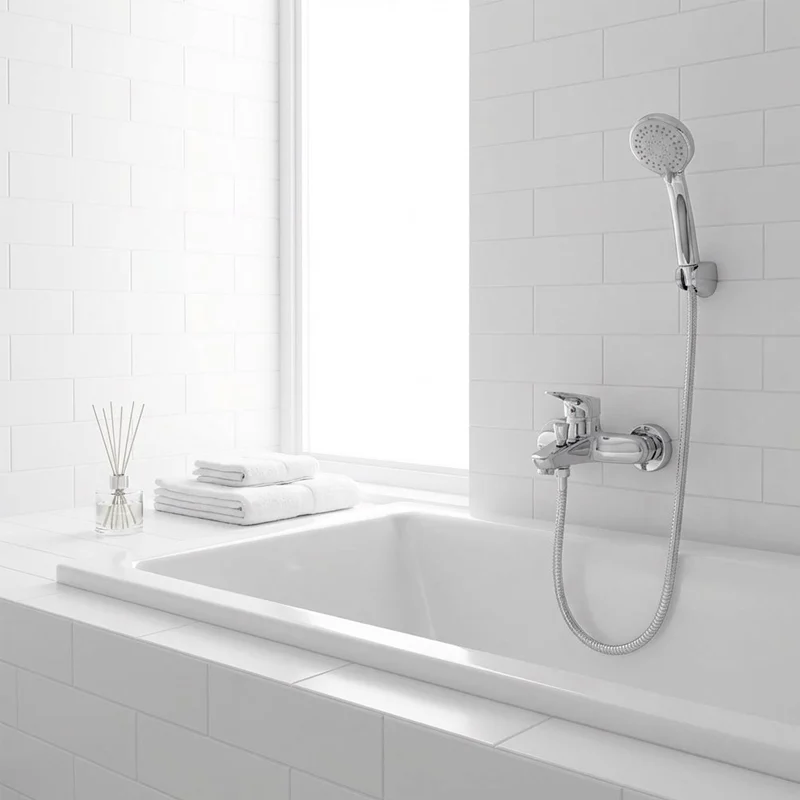

Designed specifically for bespoke family bathroom overhauls and tailored residential builds. The senior-friendly single-handle operation and dual-water outlet setup accommodate a range of household routines, enabling personalized style coordination and minor structural adjustments for private custom home orders.
Fine-tuned for sustained, heavy-duty use in luxury hotels, extended-stay apartments, boutique guesthouses, and commercial restrooms. The durable, anti-leak construction complies with standard engineering specifications, making it suitable for mass procurement and supporting large-scale refurbishment initiatives.
Engineered with a universal G1/2 connection and a modular 18x15cm footprint, ensuring full compatibility with major plumbing systems worldwide. It facilitates bulk OEM integration for vanity units, complete bathroom solutions, and sanitary ware packages, enabling standardized product alignment across supply chains.
Tailored ODM solutions for specialized project requirements, such as compact bathroom layouts, optimized thin-wall recessed installations, and scenario-driven parameter adjustments for small to medium-sized bathtubs. This approach addresses niche market demands and diverse project specifications.
This bathtub mixer is crafted from premium solid brass, ensuring long-lasting durability and resistance to corrosion.
Yes, this wall-mounted bathtub faucet is supplied with a compatible hand shower outlet.
Yes, OEM options are available, allowing for custom sizing and mold creation tailored to specific project requirements.
Yes, it features G1/2 universal inlets that are compatible with most plumbing systems worldwide.
Definitely, it is engineered to withstand frequent use in both residential and commercial spaces.
