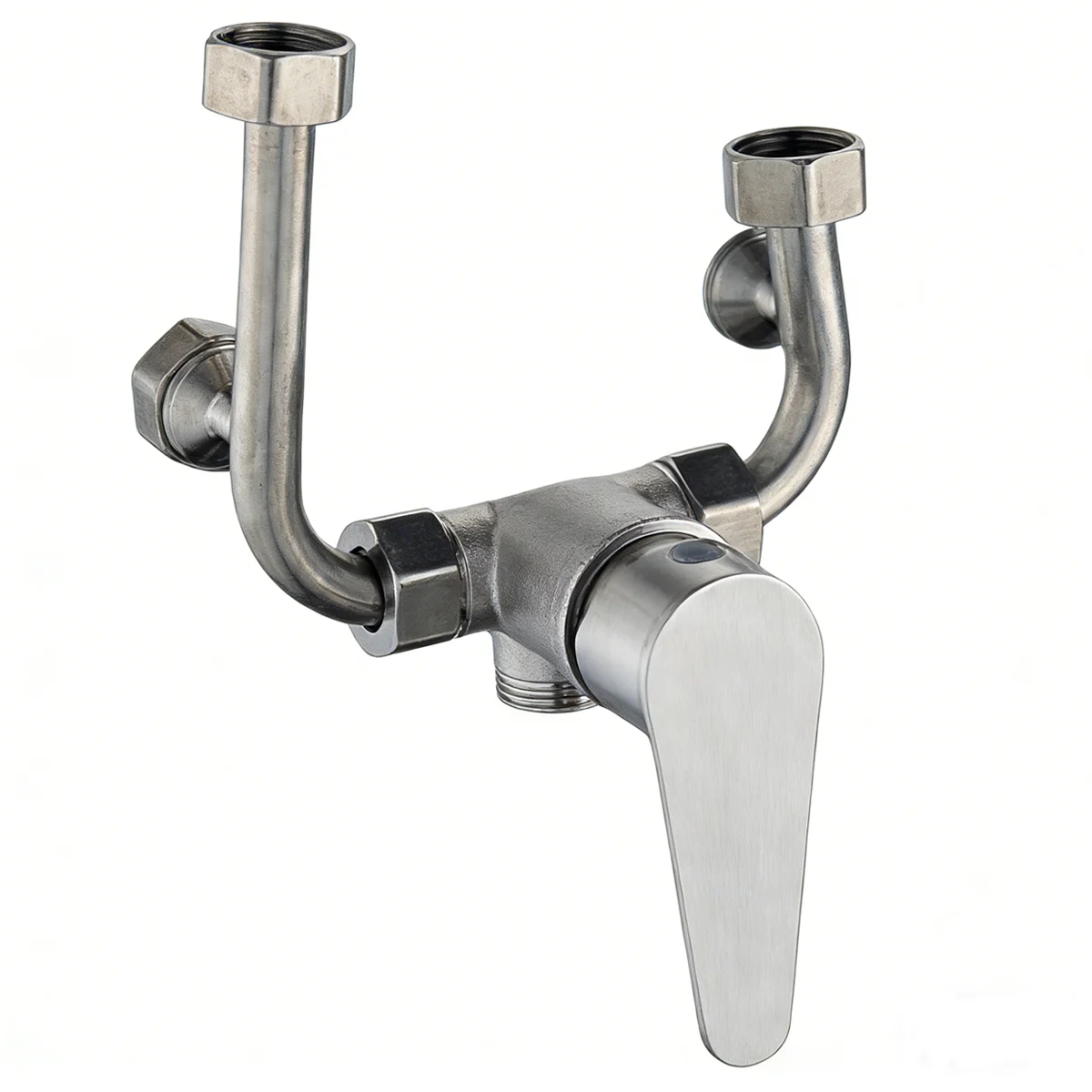

The main body and U-shaped pipes are crafted from food-grade SUS304 stainless steel (Cr≥16%, Ni≥8%) with a tube wall thickness of 1.8mm, providing a tensile strength of 520MPa to resist deformation. A matte surface finish with a roughness of Ra≤0.8μm reduces limescale accumulation, while an internally polished channel (Ra≤1.6μm) delivers a stable flow of 6.8L/min at a water pressure of 0.3MPa. The precision-calibrated ceramic cartridge ensures a zero-gap seal, and an integrated dual-chamber pressure balance cavity restricts temperature fluctuations to within ±1.5℃. Hexagonal anti-slip lock nuts withstand up to 15 cycles of repeated disassembly without thread wear, and the bottom G1/2 universal outlet is compatible with standard shower hoses. Silicone gaskets maintain compression deformation below 5% after 1,000 hours of high-temperature aging. OEM and ODM services are available, offering adjustable pipe wall thickness from 1.2 to 2.2mm, extended U-shaped pipes up to 220mm in length, metric/imperial thread conversion, and an upgraded fluorine rubber seal for high-temperature projects.
Fully integrated SUS304 structure eliminates plating peeling; 48-hour salt spray resistance ensures an 8–10 year lifespan, three times longer than brass faucets. Replacement frequency drops by 67%, saving over 60% in total procurement and installation labor costs across a five-year project cycle. All custom orders adhere to the same anti-corrosion standards.
A 500,000-cycle high-density ceramic cartridge ensures zero static dripping under 0.8 MPa water pressure, keeping the finished leakage complaint rate below 0.3%. This is significantly lower than the 8–12% market average for low-cost faucets, drastically reducing return and on-site repair expenses.
Ultra-smooth internal and external surfaces reduce limescale adhesion by 75%. For high-frequency commercial use, the maintenance cycle extends from one month to six months, cutting cleaning labor input by over 80% without requiring additional descaling chemicals.

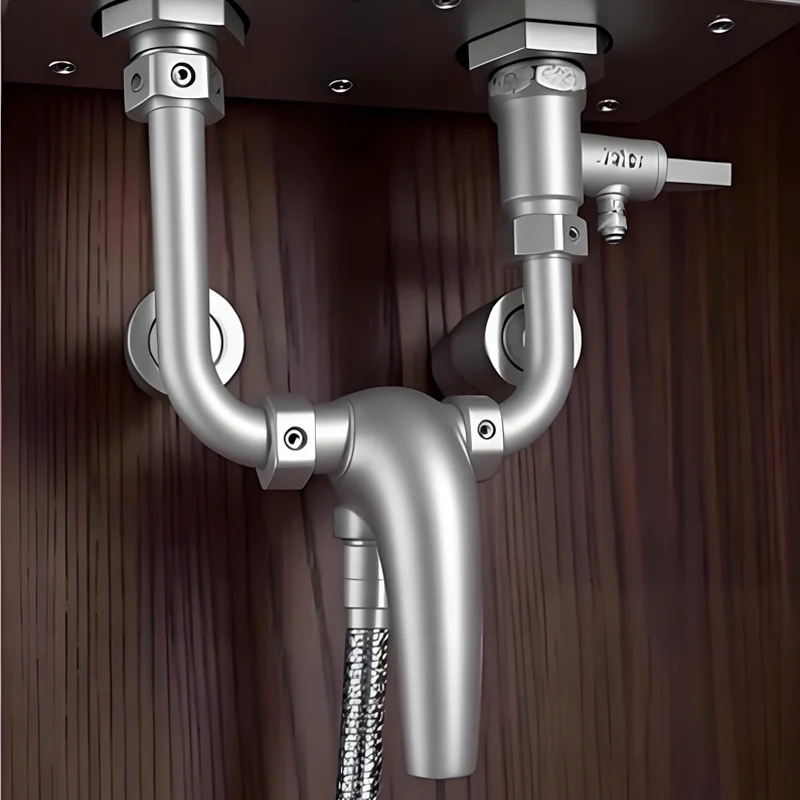

Pre-installed 3mm high-temperature silicone gaskets eliminate the need for extra raw tape or sealant; 100–160mm fully adjustable U-pipes remove the need to purchase extension adapters, reducing supporting accessory costs by 45%.
Stock and OEM/ODM goods share unified raw material, aging, and 24-hour pressure testing standards, achieving a finished pass rate above 99.5%. Mass production error is controlled within ±2% to avoid batch rejection losses. A transparent production flow shortens delivery cycles and reduces inventory capital occupation.
The process begins with a standard 1.8mm thick SUS304 tube blank, which is shaped by numerical control bending equipment to create an integrated U-shaped pipeline with no welded joints. Digital mold positioning ensures that the bending angle error is kept within ±0.3°.
Multi-station mechanical grinding produces a uniform matte anti-fingerprint surface. The internal flow channel undergoes secondary ultra-fine polishing, achieving a smooth finish of Ra≤1.6μm. For OEM/ODM orders, a matte black sandblasted surface treatment can be customized.
Professional positioning equipment is used to install and calibrate a 40mm large-diameter ceramic cartridge. This is paired with 3mm thick high-temperature silicone sealing gaskets and anti-slip stainless steel lock nuts. Each assembly station utilizes a torque wrench to control the tightening force, preventing thread damage.

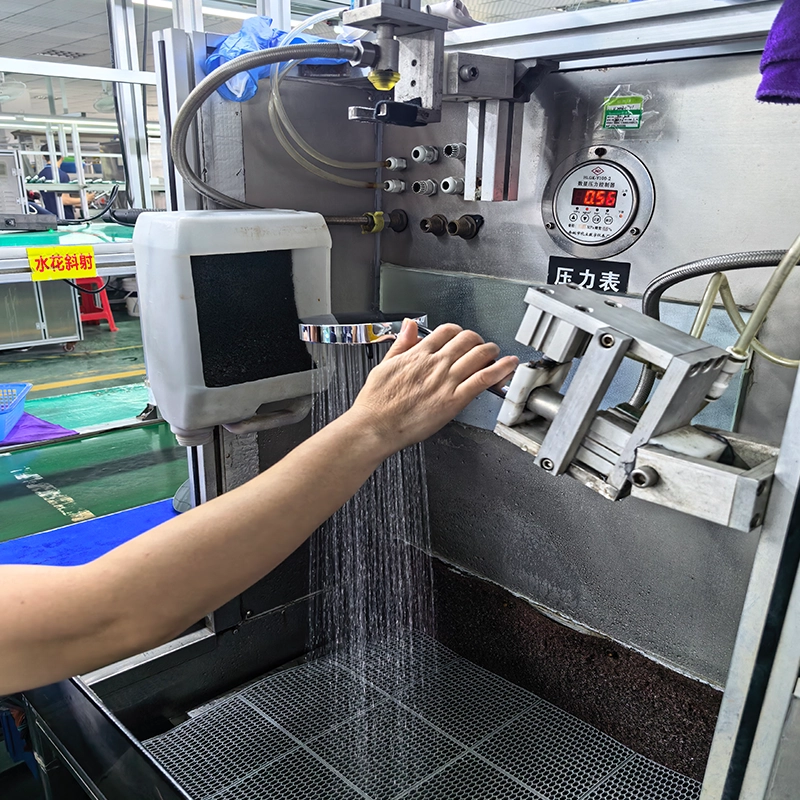

Each unit undergoes complete cold-hot mixing temperature control, water flow output, and full-joint tightness testing one by one. Prior to delivery, customized brand color boxes, multi-language instruction manuals, and ocean-transport shockproof carton packaging solutions are provided for all OEM and personalized custom orders.
Each incoming batch of SUS304 stainless steel tube blanks is checked using spectral analysis to ensure chromium levels are at least 16% and nickel at least 8%. A full sampling inspection is carried out with digital calipers, keeping pipe wall thickness tolerances within ±0.05mm, thereby removing any thin-walled or substandard raw materials. Every ceramic cartridge batch undergoes sampling and 100,000 pre-cycle wear screening to sort out wafers with uneven flatness.
For all completed products, a sample group is tested by opening and closing the lever continuously 500,000 times under a standard water pressure of 0.3MPa. After this test, the flatness deviation of the ceramic disc remains under 0.001mm with no dripping observed, while the temperature control error stays within ±1.5℃.
All finished products are submerged under a maximum testing water pressure of 0.8MPa for a full 24 hours. The valve body, U-pipe, and threaded connection points are then examined; the pass criterion is zero water leaks and no static dripping.
Stainless steel finished products are placed in a salt spray test chamber for 48 hours of continuous spraying. The qualification standard is that no rust spots, oxidation discoloration, or surface pitting corrosion appear on any metal surfaces.
Every single unit undergoes individual hot-and-cold water mixing calibration, water flow output measurement, and spacing adjustment flexibility checking before shipment. A random 5% sample of finished products is taken for a 72-hour high-temperature aging test, with the overall pass rate kept above 99.5%, covering all OEM, ODM, and personalized custom orders.
This stainless steel mixer is our standard base model, optimized for long-term brand OEM partnerships. In mass customized orders, we ensure consistent anti-corrosion and anti-scale performance, support laser logo engraving, offer exclusive customized packaging, and provide uniform parameter calibration. This helps overseas sanitary brands launch differentiated stainless steel mixer product lines without any extra mold development costs, while guaranteeing stable batch quality for repeat OEM orders.
We offer targeted ODM secondary development for clients with exclusive regional market strategies. Our engineers adjust U-pipe length, internal anti-scale coatings, sealing configurations, and thread specifications based on local water quality, humidity, and installation standards. This customized, exclusive design enables our partner traders and brand clients to build unique product differentiators and escape homogeneous price competition in wholesale channels.
We provide dedicated custom supply solutions for engineering contractors and integrated project suppliers handling large-scale renovations of apartments, staff dormitories, and resorts. Depending on project batch size, we adjust product wall thickness, upgrade high-temperature sealing fittings, and standardize installation accessory matching. This delivers custom mixers with low failure rates, cutting overall post-maintenance costs for our B-end partners.
We support small-volume trial custom orders for emerging cross-border trading companies and newly established sanitary brands. Clients can test market feedback with customized samples featuring adjusted surface finishes or accessory configurations before moving to mass production. Flexible MOQ and a full one-stop OEM processing service lower the market entry threshold for all new cooperative partners.
A: It features a seamless SUS304 stainless steel design with 1.8mm thickness and 48-hour salt spray resistance, ensuring an 8–10 year lifespan. Limescale buildup is reduced by 75%, and the 500,000-cycle cartridge maintains temperature fluctuations within ±1.5℃ under pressures ranging from 0.1 to 0.8MPa. Custom OEM logos and ODM structural modifications are also supported.

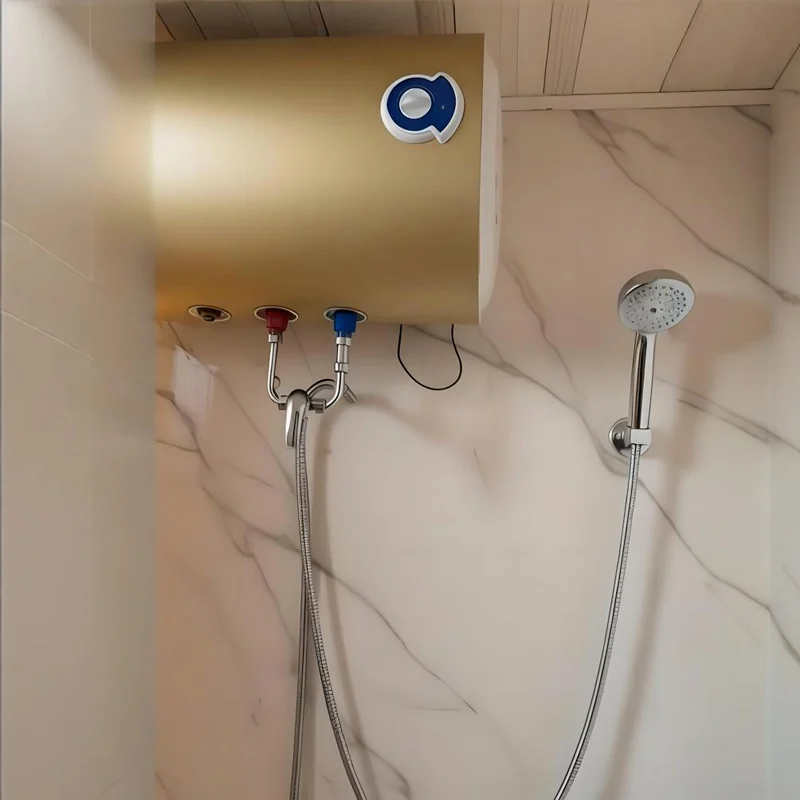

A: The stepless spacing adjustment spans 100–160mm, accommodating 99.7% of water heaters. For projects with extra-wide hole spacing, ODM customization allows single-side U-pipes up to 220mm.
A: The ceramic cartridge undergoes 500,000 cycles with zero leakage at 0.8MPa. The integral stainless steel construction eliminates corrosion-related seepage risks, and all custom units adhere to consistent pressure testing standards.
A: Offerings include private label logos and packaging customization, as well as ODM development of pipes, surfaces, threads, and channels. Small-batch customizations are possible for specialized water quality and installation scenarios, backed by full technical support.
A: Standard gaskets are designed for hot water up to 0–95℃, with compression deformation below 5% after 1,000 hours of aging. For continuous commercial use, ODM fluorine rubber high-temperature gaskets are available as an upgrade option.
