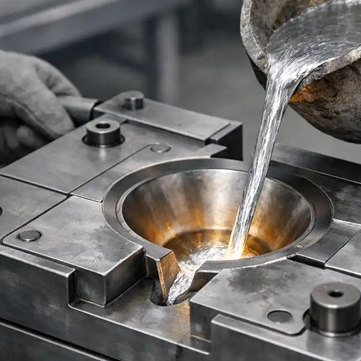

Die casting is a precision manufacturing process in which molten non-ferrous metals—most commonly aluminum, zinc, or magnesium—are injected into hardened steel molds under high pressure to produce near-net-shape components with tight tolerances and superior surface finish. The rapid solidification inside the die enables the formation of complex geometries, thin walls, and consistent dimensional accuracy, making the process highly suitable for high-volume production. In the sanitary and plumbing sector, die casting is widely used to manufacture structural and decorative parts for shower heads, faucets, toilet seat hardware, and other bathroom accessories, where strength, corrosion resistance, and high-quality appearance are critical. This process delivers excellent repeatability, cost efficiency, and cosmetic quality for premium bathroom products.
Advantages of Die Casting
Complex Geometry
Die casting enables the production of custom sanitary parts and bathroom components with thin walls and intricate designs while maintaining dimensional stability.
Strength
Metal die castings offer superior strength and high-temperature resistance compared to plastic parts. Aluminum, in particular, provides an excellent strength-to-weight ratio.
Precision
Standard tolerances range from ±0.003″–0.005″ per inch, with tighter tolerances of ±0.001″ achievable for complex designs and specific materials.
Custom Finishes
Die cast parts can be finished with smooth or textured surfaces, plating, or paint to enhance aesthetics, durability, and corrosion resistance.
Die Casting Materials for Bathroom Hardware
Aluminum Alloys
Aluminum is the most widely used material in die casting for shower heads, faucets, toilet seat parts, and other bathroom accessories due to its outstanding balance of strength, weight, and corrosion resistance. Aluminum die castings provide excellent thermal conductivity, high dimensional accuracy, and superior machinability, making them ideal for both structural and decorative bathroom components. In addition, aluminum is fully recyclable, supporting sustainable manufacturing. Common aluminum die casting grades we supply include A360, A380, A383 (ADC12), and A413, all selected for their reliability in high-volume, precision production.
Zinc Alloys
Zinc alloys are preferred when tight tolerances, fine surface detail, and premium cosmetic finishes are required for bathroom hardware. Their excellent fluidity and low melting point enable the production of complex, thin-wall parts with exceptional dimensional stability, making them ideal for faucet bodies, shower brackets, toilet seat hinges, and decorative bathroom accessories. Zinc alloys also offer high hardness, impact strength, and easy plating for chrome or specialty finishes. We work with a full range of industry-standard zinc die casting alloys, including Zamak 2, Zamak 3, Zamak 5, Zamak 7, ZA-8, ZA-12, and ZA-27, to match specific performance and finishing requirements.
Available Die Casting Surface Finishes
Standard (As-Cast)
Zinc and aluminum-zinc die cast parts for shower heads, faucets, toilet seat parts, and other bathroom accessories can be left as-cast. This provides basic corrosion resistance, though aluminum parts typically require additional coating. As-cast surfaces may show gate marks or ejector pin impressions. Surface roughness for zinc alloys usually ranges from 16–64 microinch Ra without specialized tooling.
Bead Blasting
Bead blasting uses compressed air to spray fine glass beads, producing a smooth, matte finish. This process refines the surface, removes minor imperfections, and prepares bathroom hardware components for secondary finishing such as plating or powder coating.
Powder Coating
Powder coating applies a durable, corrosion- and wear-resistant layer to die cast faucets, shower heads, and toilet seat parts. The electrostatically applied powder is baked for a uniform finish, available in a wide range of colors, while also masking minor surface defects.
Plating
Die cast parts can undergo various plating processes including chrome, nickel, brass, tin, silver, gold, or Teflon coatings. Plating enhances bathroom accessories with corrosion resistance, durability, and premium aesthetics, commonly applied to high-end faucets and shower components.
Anodizing
Mainly for aluminum parts, anodizing forms a protective aluminum oxide layer, improving corrosion resistance and wear protection. Type II anodizing provides basic corrosion resistance, while Type III offers a thicker, more wear-resistant coating. Ideal for shower heads and other aluminum bathroom components.
Chemical Film
Chromate conversion coatings protect aluminum die cast parts from corrosion and improve paint adhesion. These films are electrically conductive and provide an excellent base for secondary finishing on custom bathroom hardware.
High-Standard Quality Control for Die Casting

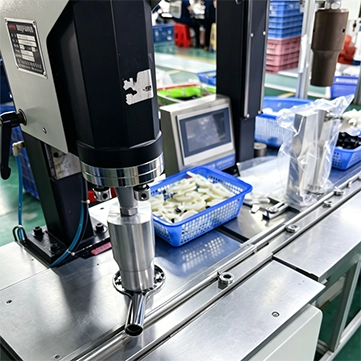

We enforce rigorous QC across every die-cast run for shower heads, faucets, toilet seat parts, and other bathroom accessories, starting with incoming material verification and tool try-out validation. Parts undergo dimensional inspection (CMM), porosity checks (X-ray/CT where required), mechanical and surface tests (hardness, plating adhesion, salt-spray), and functional/pressure testing for wet-service components. Every batch is traceable with documented inspection reports, PPAP/PPF samples on request, and full conformity to ISO/IATF quality protocols to ensure reliable performance and consistent cosmetic quality for sanitary applications.
Why Choose Our Die Casting Service
In-House Manufacturing
Our automated facility supports custom shower heads, faucets, toilet seat parts, and other bathroom accessories, giving us full control over tooling, production speed, and scalability.
Certified Quality Control
With ISO 9001:2015 and IATF 16949 systems, we run multi-stage inspections from raw material to final shipment, with PPAP, CMM reports, and surface validation for every project.
Efficient Prototyping
Low-cost tooling and production-grade alloys allow fast, accurate prototypes to validate design, fit, and finish before volume production.
DVT, PVT & Mass Production
We support DVT/PVT, pilot runs, and full-scale manufacturing with stable processes and statistical controls to ensure consistent quality at any volume.
