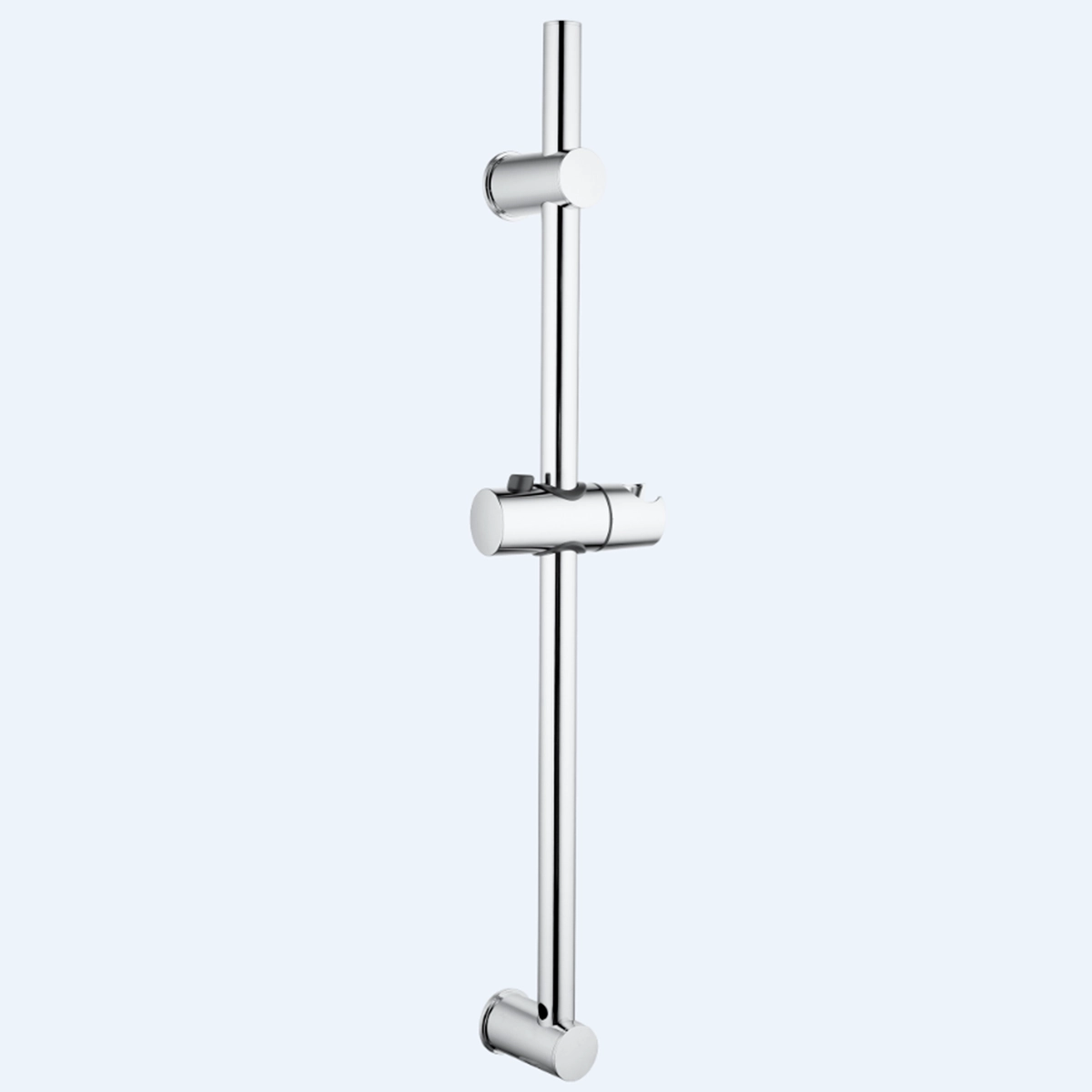

Manufactured using stainless steel and high-grade ABS engineering plastic, this shower grip bar comes with a polished chrome finish, a universal sliding holder, and standard mounting dimensions. Its design accommodates both drilled and drill-free installation options. Customization options include bar length, finish color, logo imprinting, and packaging. The product undergoes corrosion resistance testing and repeated sliding performance checks to guarantee long-lasting durability.
The finished length of the slide bar can be adjusted within a range of 600 mm to 1200 mm, with a cutting precision of ±0.5 mm. Six standard surface treatments are available, including polished chrome, matte black, brushed nickel, brushed gunmetal, antique bronze, and brushed gold, with an electroplating thickness of 8–12 μm to ensure corrosion resistance. The slider can be customized with a laser-engraved logo (minimum text height of 2 mm) or an embossed mold logo with a depth of 0.3 mm. Packaging is fully customizable, offering a plain white box, a color retail box with CMYK four-color printing, and an outer carton with standard export labeling. The minimum order quantity for packaging customization starts at 500 units per design.
An in-house mold workshop enables the development of private slider molds, with a lead time of 15 to 20 days. The internal spring clamping force can be adjusted from 12 N to 35 N, accommodating lightweight residential hand showers and heavier engineering shower heads weighing up to 3 kg. A silent damping upgrade reduces sliding noise to ≤32 dB during height adjustment. For engineering heavy-duty tubes, the wall thickness can be customized from 0.8 mm in the base version to 1.5 mm in reinforced thickened pipes. Contact surfaces can be customized with food-grade silicone pads, ranging from 2 to 4 mm in thickness, to prevent scratches on the chrome tube and increase the friction locking coefficient by 40%.
The custom rod diameter range includes standard tubes of 22 mm and 25 mm, as well as non-standard sizes from 19 mm to 30 mm. Mounting hole spacing can be adjusted from 80 mm to 200 mm to comply with local wall installation standards in the EU, US, and Southeast Asia. We provide one-stop matching development for complete shower sets, including a slide bar, handheld shower, and shower hose combination, with a unified surface finish and structural tolerance controlled within ±0.8 mm for bulk hotel project procurement.
Multi-lingual installation guides can be customized in English, Spanish, French, German, Thai, and Arabic, accompanied by CAD dimensional drawings. Technical specification sheets for project tenders can be edited according to client bidding standards, and third-party salt spray and cycle test reports can be branded with the customer’s logo. A dedicated technical account manager is assigned for orders exceeding 5,000 sets, offering real-time production progress tracking, coordination of pre-shipment inspections, and support for post-production engineering modifications.
All SUS304 stainless steel materials are obtained from certified suppliers and undergo incoming inspection to confirm chemical composition, dimensional accuracy, and corrosion resistance prior to entry into production.
The manufacturing process integrates automated cutting, CNC machining, robotic welding, and precision forming technologies to enhance production efficiency while ensuring consistent dimensional accuracy across large-volume orders.

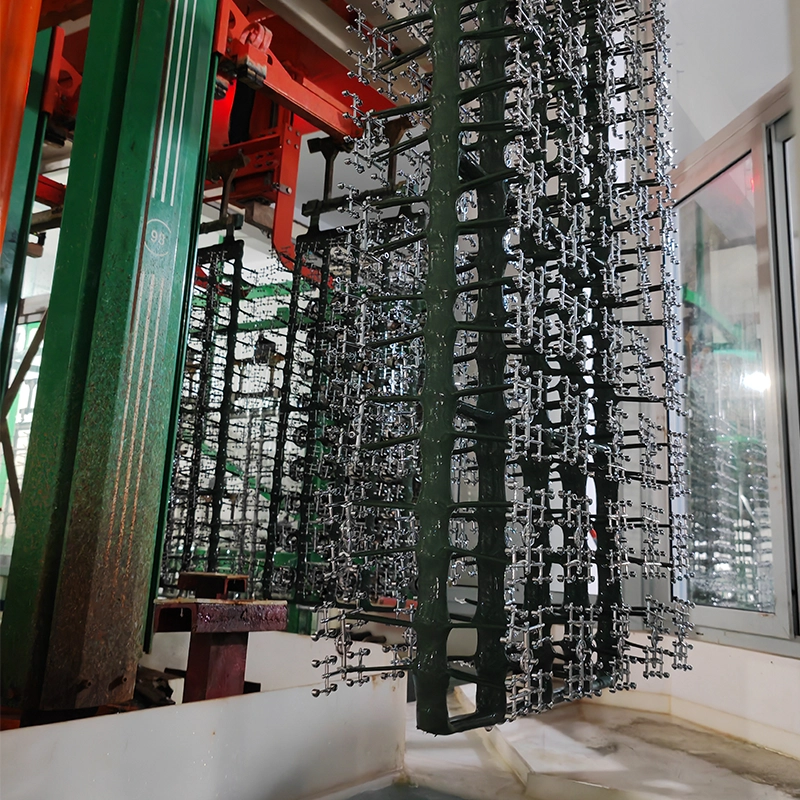

Each component is subjected to standardized grinding, brushing, and surface refinement procedures with controlled parameters to guarantee uniform texture, appearance, and scratch resistance during mass production.
Standardized assembly units apply lean manufacturing principles, with critical production data and inspection records maintained throughout the entire production cycle to boost consistency and enable batch traceability.
Every completed shower component is tested for air pressure, hydraulic leakage, flow performance, and visual defects before shipment. This comprehensive final quality check ensures dependable functionality in residential, commercial, and hospitality environments worldwide.
All metal tubes and slider core parts undergo continuous humid salt spray testing to verify their anti-rust performance in prolonged bathroom damp conditions.
Finished adjustable holders are subjected to tens of thousands of repeated sliding cycle tests to ensure stable locking force and consistent operational feel even after extended frequent use.
Chrome-plated tube surfaces are checked for scratch resistance and plating adhesion to prevent coating deterioration or peeling during everyday use.
Full-process sampling inspections are conducted across tube drawing, polishing, electroplating, and assembly stages to maintain consistent dimensional tolerances and assembly tightness across all mass production batches.
Engineering-enhanced thickened tube versions undergo static load testing to meet the demand for supporting heavy handheld showers in hospitality project settings.
Custom mold-based slide bar series designed for mid-to-high-end bathroom brands, featuring adjustable damping, unique plating options, and exclusive slider designs. These elements help create distinct retail product lines, avoiding market saturation and homogeneous competition.
Heavy-duty, reinforced thick-wall customized models tailored for hotel management groups, serviced apartment chains, and real estate hardcover projects. These products adhere to standardized dimensional specifications for bulk centralized tender procurement.
Tiered standardized and lightly customized batches created for local building material chains. These support mixed orders with varying lengths and finishes, helping balance inventory pressures while meeting diverse market demands.
Non-standard, custom-sized products developed for renovation contractors and interior design firms. Adjustable hole spacing and pipe diameters are offered to accommodate wall mounting conditions in older homes undergoing reconstruction.
Most standard handheld shower heads are compatible with this universal shower holder bar design.
In many cases, the standard mounting dimensions allow direct replacement of existing shower bars.
It improves compatibility, reduces installation concerns, and minimizes inventory complexity.
Yes. Length, finish, logo, and packaging can be customized for different market requirements.
Yes. Its low-maintenance structure and stable quality make it ideal for hospitality applications.
