The square bidet hand held sprayer features an integrated plastic body with reinforced internal water flow channels for stable spray performance. Multi-hole anti-scale nozzles with optional silicone tips help reduce clogging and simplify maintenance. Thickened 4-point threaded connections with rubber sealing components provide a secure and leak-resistant installation. Designed to operate reliably under both low water pressure from 0.1MPa and high-pressure conditions, the durable dial-type stop valve ensures consistent sealing performance. As an experienced OEM and ODM bathroom accessory manufacturer, JeKare supports customized solutions including product appearance, logo branding, surface finishes, packaging, and functional configurations to meet different market requirements.
Surface treatment options include mirror chrome electroplating, matte black powder coating, brushed nickel, white, and custom Pantone colors. Branding can be applied via laser engraving, silk-screen printing, embossed logos, or molded logos, depending on the product design. Packaging choices range from plain cartons and branded color boxes to barcode labels, multilingual instruction booklets, and custom retail packaging.
The sprayer body, handle length, grip diameter, nozzle diameter, and trigger setup can be adjusted based on customer drawings or reference samples. Optional valve configurations include rotary shut-off valves, push-button valves, and reinforced high-pressure cartridges. Thread sizes are offered in G1/2, BSP, NPT, or custom connections to suit various export markets.
A range of material combinations is offered to align with different market segments and budget levels.
Main housings are produced using one-piece injection molding to reduce assembly gaps and enhance dimensional consistency. Key sealing components are assembled under controlled procedures, followed by 100% leakage testing before packaging. Surface finishing methods are chosen according to customer requirements, including chrome electroplating and wear-resistant powder coating.
Support extends from prototype development to full container-load production.
The square handheld bidet sprayer is produced through a controlled sequence that includes injection molding, precision assembly, surface treatment, and performance testing. Each stage is fine-tuned to guarantee dimensional precision, pressure endurance, and steady OEM production quality.

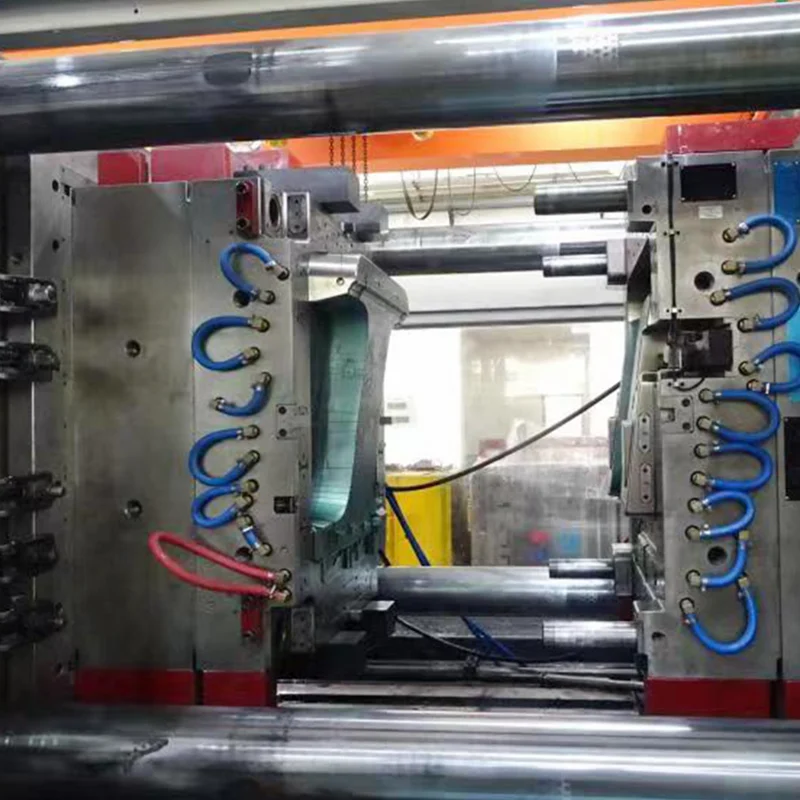

The sprayer body is made using virgin ABS injection molding with regulated settings, such as material drying at 80–85°C for 3–4 hours, a melt temperature of 220–250°C, and an injection pressure of 80–120 MPa. Single-piece molding reduces assembly gaps and the potential for leaks. Critical measurements are held to within ±0.15 mm to ensure proper alignment of the body, valve components, and sealing parts.
Valve cartridges, threaded connections, and sealing rings are put together under controlled torque conditions. EPDM or NBR seals are compressed within an ideal range to preserve long-term sealing performance. Each assembled unit undergoes pressure testing at 1.0–1.6 MPa to confirm valve reliability and resistance to leaks.
Surface options include chrome electroplating, matte powder coating, brushed finishing, and custom colors. Electroplated models go through polishing, nickel plating, and chrome coating processes, while coated surfaces are tested for adhesion and corrosion resistance, including a 72-hour neutral salt spray test.
Silicone anti-scale nozzles are calibrated to ensure steady water distribution and resistance to clogging. Flow performance is tested based on customer specifications, typically ranging from 1.0 to 2.5 GPM. Before shipment, every product passes 100% leakage testing, spray inspection, appearance checks, and accessory verification. Production records and quality data are kept for OEM/ODM traceability.
All raw materials undergo inspection prior to production, encompassing ABS casings, silicone nozzle tips, sealing elements, and metal valve components. Checks on material quality, dimensional precision, and surface finish are conducted to ensure consistent manufacturing performance.
Production is carried out under the ISO 9001 quality management framework. Certification documents such as CE, RoHS, CUPC, and WaterMark can be supplied based on the requirements of different export markets.
Product dependability is validated through a series of laboratory assessments:
Quality inspections are performed throughout the entire production process, covering incoming material checks, assembly line monitoring, and final product testing.
Each completed unit is examined for leaks, spray performance, visual defects, and the presence of all accessories prior to packaging. Batch inspection records and quality documentation are kept available for customer review and to meet export requirements.
An effective cleaning tool designed for routine restroom maintenance in office complexes, shopping malls, schools, and other public venues. The targeted spray boosts cleaning productivity and lowers water usage.
Well-suited for hotels, resorts, serviced apartments, and vacation rentals that need dependable bathroom accessories to withstand ongoing guest use.
Developed for nursing homes, rehabilitation centers, hospitals, and assisted living settings where convenient personal hygiene solutions are a must.

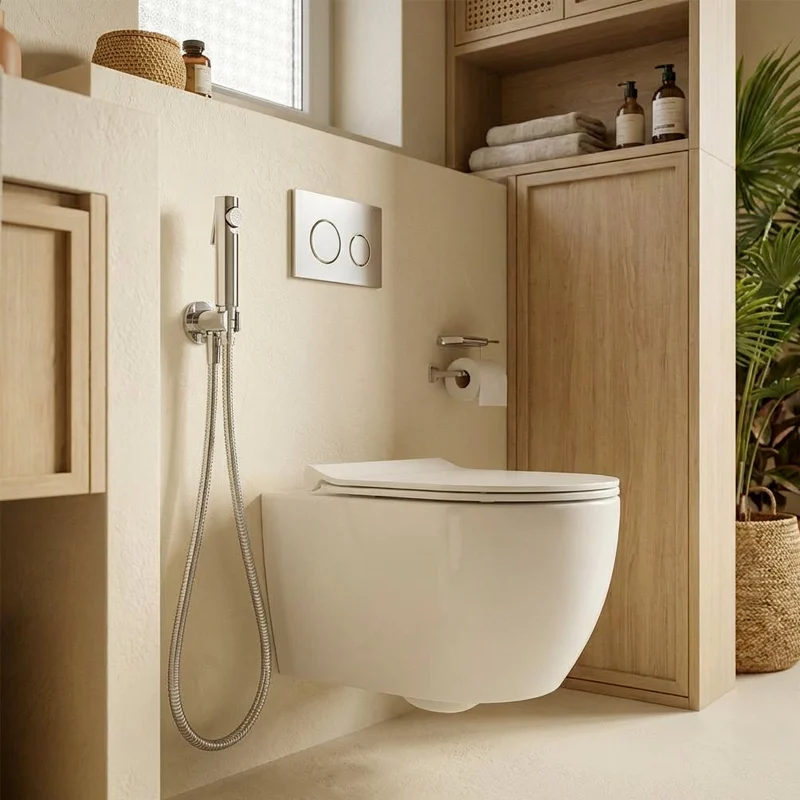

Perfect for family bathrooms to support personal hygiene, toilet rinsing, baby care, pet cleaning, and other everyday cleaning tasks.
Yes, reinforced valves and thickened threading ensure a leak-proof experience even when used with high water pressure.
Absolutely. OEM/ODM services are available, allowing customization of logos, colors, handle and nozzle dimensions, valve types, spray patterns, and molds according to your specifications.
The sprayer features multi-hole anti-scale nozzles and optional silicone tips, which keep it free from blockages and maintain hygiene.
Yes, it complies with ISO 9001 and ISO 14001 standards, undergoing durability and leak-proof testing. Documentation can be provided for B2B orders.
