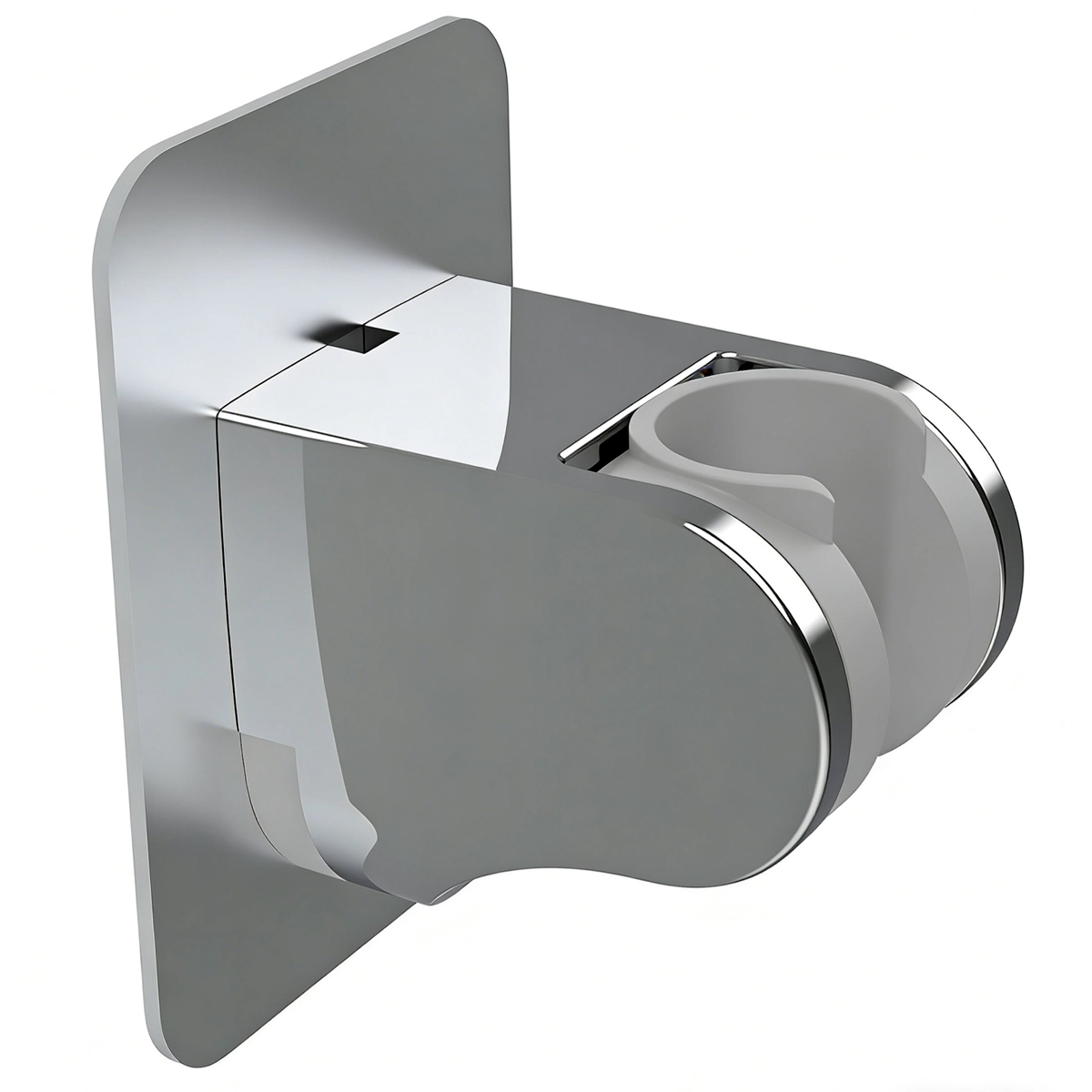

This shower head bracket adopts a dual-mount design—one SKU supports both adhesive installation (no drilling required) and hidden screw mounting—cutting inventory costs by up to 50%. Available in two variants: a 10μm chrome-plated zinc alloy version (25kg load capacity) and a chrome-plated ABS version (10kg load capacity). It includes a wear-resistant ceramic dampening mechanism, a replaceable nano waterproof adhesive pad, and an anti-scratch silicone liner. The universal C-shaped holder accommodates shower handles with diameters from 19 to 24 mm, covering 95% of mainstream handheld showers. A detachable adhesive base simplifies maintenance, reduces the need for after-sales service, and makes the product ideal for residential, rental, hotel, and large-scale OEM/ODM applications.
We deliver a tailored modular customization approach for the shower head holder, built around its unique fixed base design, to address diverse B2B personalization requirements.
The removable base component allows for customized structural modifications, such as optimizing the adhesive region, altering the spacing of mounting holes, and redesigning the thickness or shape—adapting to uneven wall surfaces or specific installation environments.
Adjust the bracket’s opening width, grip strength, and tilt adjustment range to accommodate non-standard shower heads or unique usage angles, enabling distinct product differentiation.
Pick from ABS chrome-plated or zinc alloy chrome-plated options, with customizable surface treatments like bright chrome, brushed, or matte finishes, to match mid-to-high-end bathroom accessory lines.
Easily set up pure self-adhesive, pure screw-fixed, or dual-installation modular parts to streamline inventory management and meet the needs of retail, wholesale, hotel, and renovation projects.
Support customized logo engraving, exclusive packaging design, and tailored silicone pads or accessories, creating a complete OEM/ODM customization system for brand clients.
We implement standardized precision manufacturing protocols to maintain consistent dimensional accuracy, structural integrity, and batch consistency for the drill-free self-adhesive shower head holder.
High-strength ABS or zinc alloy raw materials are shaped via injection molding or die-casting, adhering to a strict dimensional tolerance of ±0.10 mm. Zinc alloy parts then undergo CNC deburring and trimming to remove any burrs and ensure an exact assembly fit.

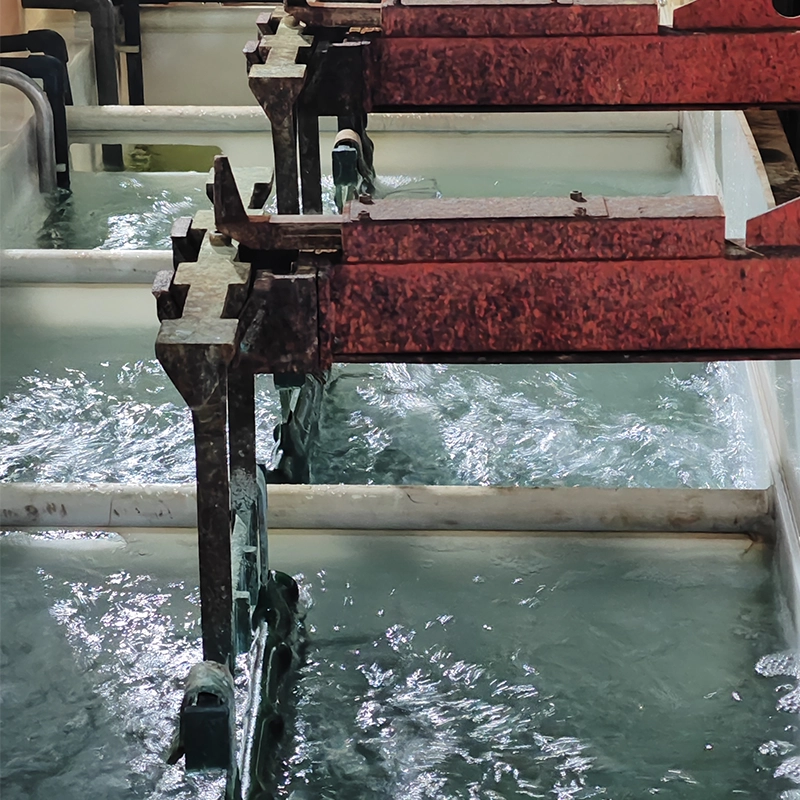

A copper-nickel-chrome multi-layer electroplating process is applied, achieving an overall coating thickness of 10–12 μm. The resulting finish offers strong adhesion and corrosion resistance, with every product passing the 96-hour ASTM B117 salt spray test.
A precisely engineered C-shaped rotating bracket enables 360° smooth rotation. Standard torque calibration provides structural reliability, supporting over 50,000 adjustment cycles without loosening or jamming.
Industrial-grade nano acrylic adhesive pads are applied automatically in a dust-free environment. This achieves an initial bonding strength of ≥180 N/25 mm and withstands a vertical pull force of 250 N after installation.
Every finished unit undergoes a comprehensive inspection covering appearance, rotation smoothness, clamping force, adhesion, and load performance. With a factory defect rate maintained at ≤0.3% and individual anti-scratch packaging, consistent quality is ensured for OEM, wholesale, and engineering projects.
Burst pressure resistance: Endures 2.5MPa static pressure for 30 mins without crack, deformation or damage, meeting ASME A112.18.1 & EN 1112 standards.
Adhesion tensile test: Withstands 250N vertical pull force for 60s.
Corrosion resistance: 10μm chrome plating passes 96-hour ASTM B117 salt spray test, free of rust, blister and peeling.
Rotation durability: 360° free rotation, 50,000 cycle test without looseness or jamming.
Static load fatigue test: Zinc alloy version holds 25kg, ABS version holds 10kg under 7×24h continuous load without deformation.
Adjustable core: Adopts Sedal/Kerox professional ceramic movement, 500,000+ service cycles, stable torsion without slipping.
Adhesive pad: Waterproof nano acrylic glue, initial adhesion ≥180N/25mm, removable without residual glue or wall abrasion.
Silicone liner: Food-grade heat-resistant silicone, 5+ years anti-aging performance to protect shower rod surface finish.

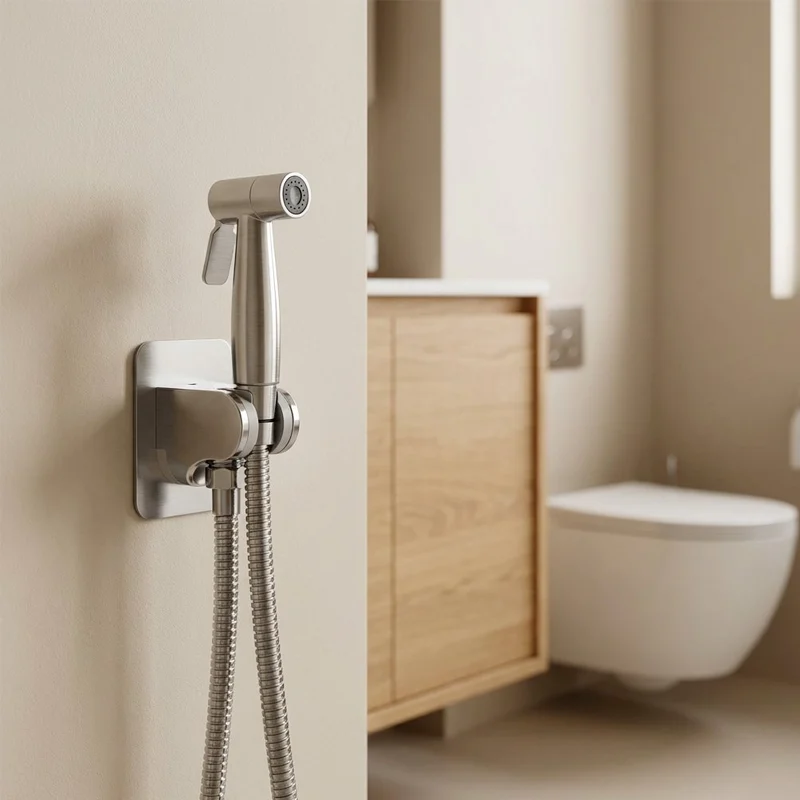

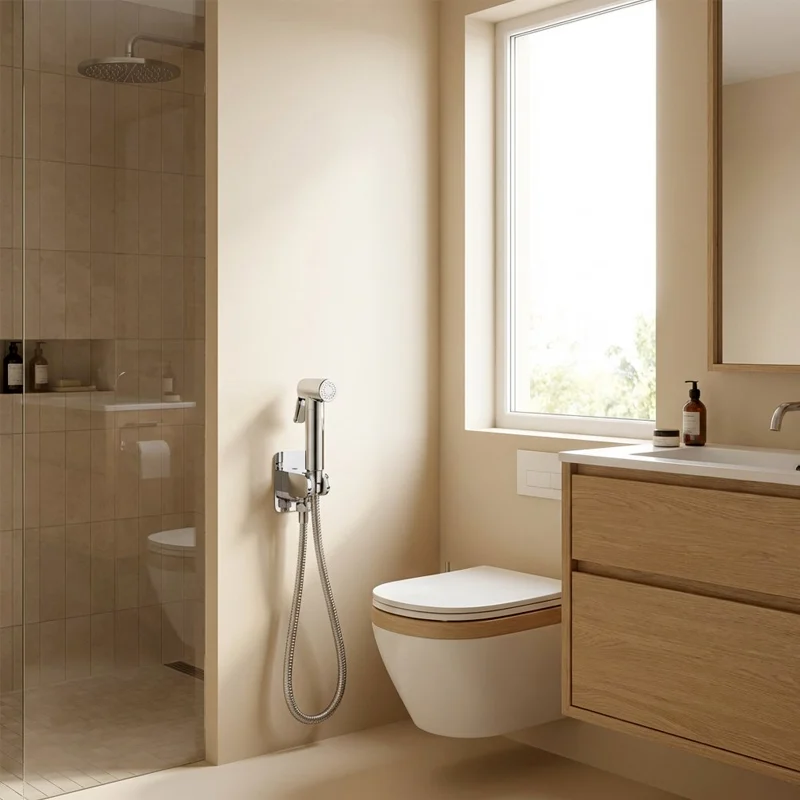

Bathrooms in homes, rental properties, and renovated spaces; drill-free setup safeguards wall tiles; simple removal with no risk of losing security deposits.
OEM/ODM Brands: Customizable logos, packaging, colors, and designs; supports private label development.
No, you don't need to drill. It uses a strong adhesive mount, but you can also secure it with screws if you prefer.
Yes, the adhesive pad comes off and can be replaced without taking off the metal part.
Yes, it's designed to be compatible with most standard handheld shower setups.
Not at all. The silicone liner prevents scratches on both surfaces.
It works best on smooth surfaces like tiles, glass, polished stone, and metal.
